[Sticky] LRGB processing

37 Posts
10 Users
7 Reactions
15.9 K Views
(@simon-sansnomme)
Hydrogen Atom
Joined: 5 years ago
Posts: 2


@vincent-mod

thank you, yes that worked with the luminance channel at 5% - very helpful, thank you.




ReplyQuote
(@skysong)
Red Giant
Joined: 7 months ago
Posts: 36


@imnewhere This is EXACTLY my same problem.   Instead treating L as the intensity and RGB as the colors to paint it, when I do it, it treats L like a white layer and the picture is always just white even though all L, R, G, B, is there,... what's going on with this??




ReplyQuote
(@mabula-admin)
Universe Admin
Joined: 9 years ago
Posts: 5379


Posted by: @skysong

@imnewhere This is EXACTLY my same problem.   Instead treating L as the intensity and RGB as the colors to paint it, when I do it, it treats L like a white layer and the picture is always just white even though all L, R, G, B, is there,... what's going on with this??

Hi Skye @skysong,

When you apply a luminance layer 100% it can seam that the image is whitened. But if you simply enable saturation and/or increase saturation in the preview filter, the colors will be there. Our RGB combine tool works currently with the HSL color model and L is a real L, not a white layer.

I have opened a new issue on my todo list to have a good look at the Luminance calculations to make the RGB composites in the RGB Combine Tool.

I know that this whitening effect is there, so I will definitely try to have this work better going forward 😉

It is on our todo list, to improve this with a more advanced color model going forward.

Please let me know if this helps,

Mabula




This post was modified 4 months ago by Mabula-Admin


ReplyQuote
(@skysong)
Red Giant
Joined: 7 months ago
Posts: 36


@mabula-admin Thx.  So in a true Luminance situation, increasing L slider would increase the colors, but in our case, in just increases White, so something needs to be adjusted to look to RGB instead and proportionately apply the "L" to boost that but not as a layer just as factor to see how much to increase the particular color, as above, for example New G = L * (G / (R+ G + B), where L itself is not displayed as a "color".


This post was modified 4 months ago by Skye Goodrich


Mabula-Admin reacted
ReplyQuote
(@mabula-admin)
Universe Admin
Joined: 9 years ago
Posts: 5379


Yes, I will try to improve this for the next release for sure 😉

Thanks @skysong

Mabula




ReplyQuote
(@skysong)
Red Giant
Joined: 7 months ago
Posts: 36

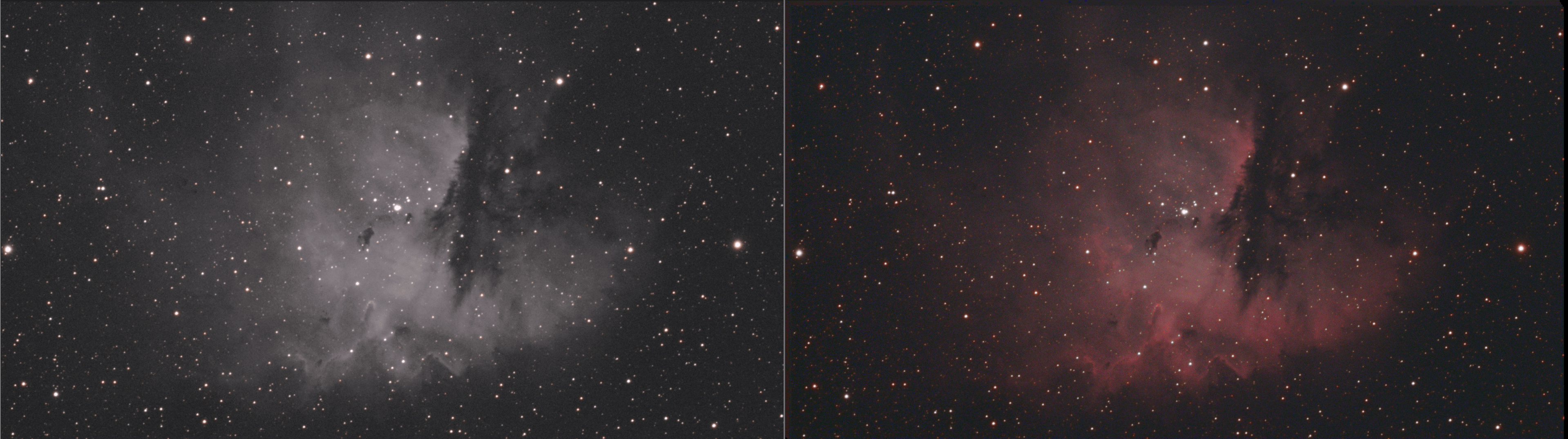

On the left is APP's RGB combine tool on LRGB, and on right is taking the L and RGB to Gimp (same data) and using the "layers" to associate the L with RGB so it stacks the intensity of the L as true Luminosity, not a white layer, as described above.  This is how APP should be doing it (without having to go to another tool).




Mabula-Admin reacted
ReplyQuote
(@mabula-admin)
Universe Admin
Joined: 9 years ago
Posts: 5379


Thanks Skye @skysong !




ReplyQuote
