OK, bit brain dead today,

what is the best way to get a luminance file from an RGB file?

input rgb combine, balance, then move colour sliders to 0% and save?

or am I overcomplicating things .

thx




ReplyQuote
(@Anonymous 174)
Joined: 9 years ago
Posts: 5702


I'm not 100% sure (I asked Mabula on this one as well), but if you have a RGB sensor, I would probably split the channels for all data (tab 2 all the way down). This gives you mono data of each channel, then you load these in and assign them all to Luminance and integrate. I think that gives a pseudo-luminance result already, you can combine this with the integrated RGB data.




Andy Booth reacted
ReplyQuote
(@mabula-admin)
Universe Admin
Joined: 9 years ago
Posts: 5146


Hi Andy @andybooth,

Luminance from an RGB file can be made using any arbitrary formula for the luminance from an RGB image like this one:

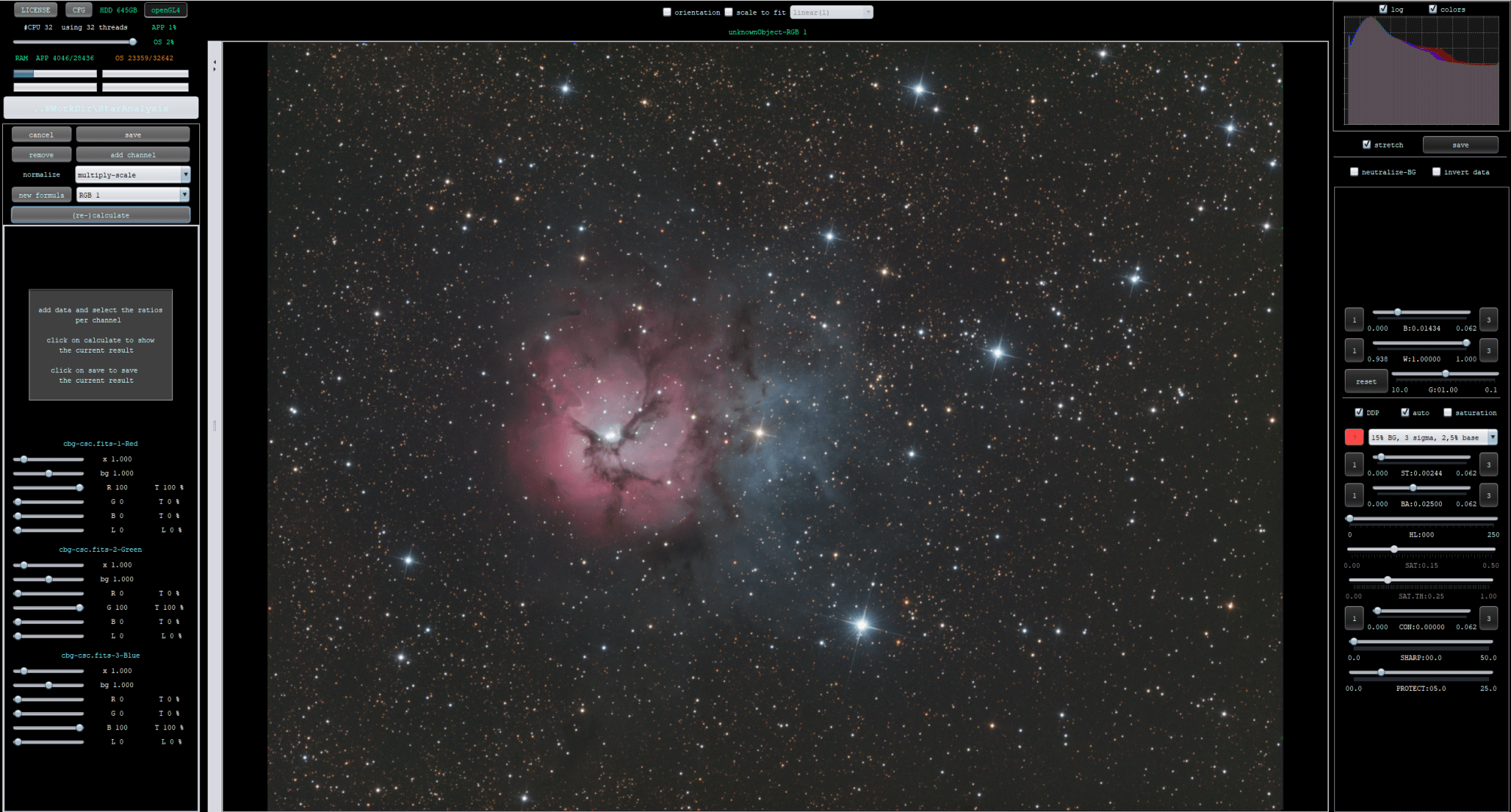

Original RGB

For example a common formula for luminance is that the luminance is based on 20% R, 70% G and 10% B:

With the RGB Combine tool, set all R,G,B sliders for the input channels to 100 and set the L slider for the input channels in such a way that you get that formula:

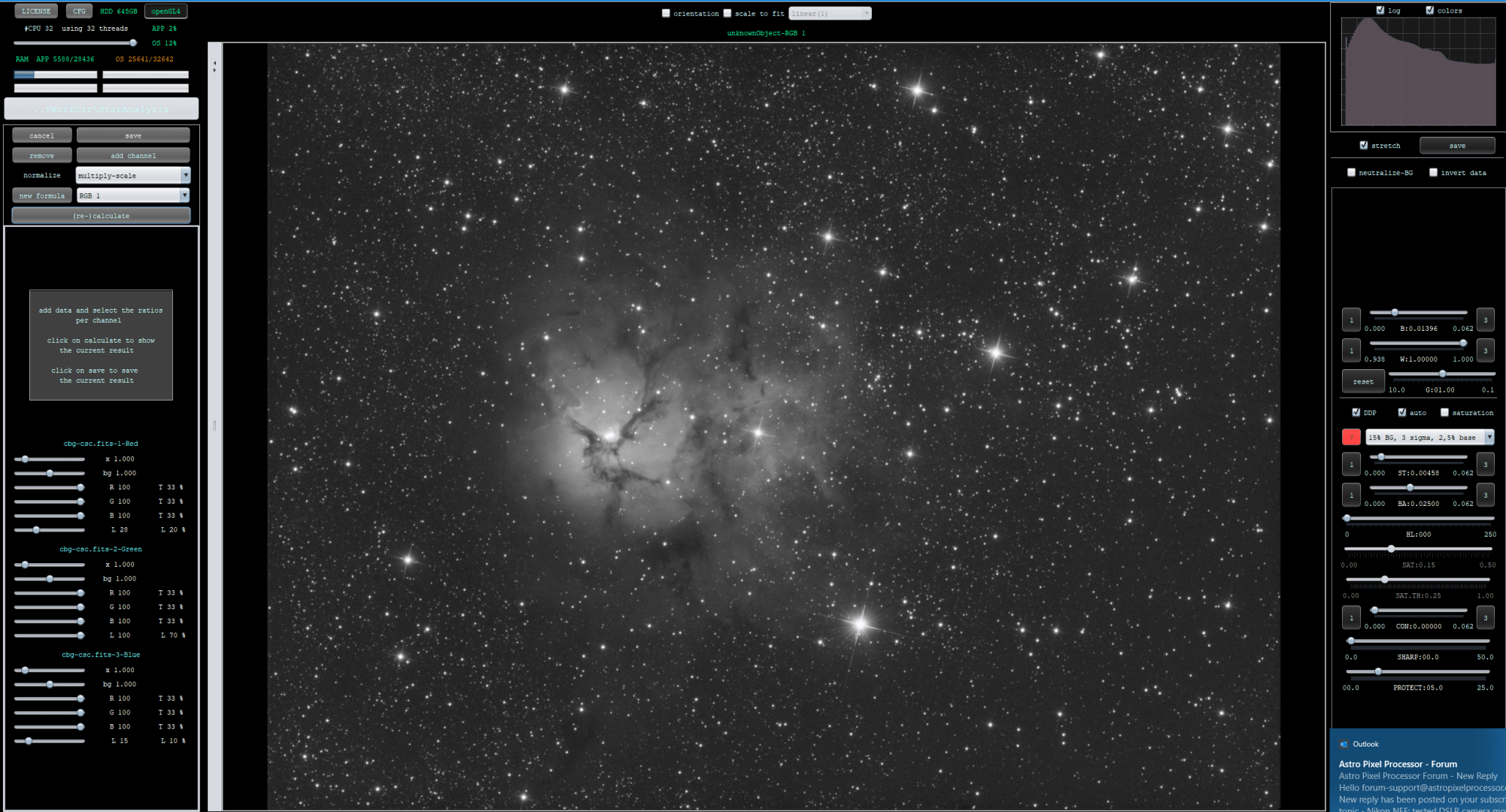

Luminance formula

Now, this result is a 3-channel image, if you split it, each channel is the same and can be used as a luminance for the image 😉

I have added to our issue list to make this easier 😉

Mabula




ReplyQuote
(@andybooth)
Red Giant
Joined: 4 years ago
Posts: 67
Topic starter

@mabula-admin

Thank you sir!




Mabula-Admin reacted
ReplyQuote
