Duo-band (L-enhance) and drizzle

  RSS

(@mackiedlm)
White Dwarf Customer
Joined: 1 year ago
Posts: 14
July 20, 2020 12:03

I have captured images of NGC6960 (Western veil) on a Canon 700D with L-enhance duoband. I then integrate with HA-extract and OIII extract and rebuild an HOO image in Combine RGB and it looks good. When I look at the HA and OIII they are very different which is all good.

BUT - if i try to integrate the same data with Ha-extract and OIII extract and drizzle in the integration, the HA and OIII mono images look identical. and of course the combined HOO image is no good.



Am I missing some tweak in settings?

Thanks



David.




ReplyQuote
(@vincent-mod)
Quasar Admin
Joined: 3 years ago
Posts: 2484
July 20, 2020 13:38

Interesting, it might be a bug perhaps. I’ll inform Mabula about and thank you for notifying us. If it’s something else, we’ll find it out.


ReplyQuote
(@neverfox)
White Dwarf Customer
Joined: 4 months ago
Posts: 11
September 15, 2020 00:00

I'm experiencing the same thing, i.e. identical (and not very good) Ha and OIII results when I use Bayer/X-Trans drizzle. As an experiment, I tried regular drizzle and said No when it asked be to switch to Bayer/X-Trans. That gave similar (good) results to regular interpolation.


ReplyQuote
(@vincent-mod)
Quasar Admin
Joined: 3 years ago
Posts: 2484
September 15, 2020 09:59

Are you willing to share your data for me to have a closer look?

Go to https://upload.astropixelprocessor.com and use upload1 (or upload2 till 5) as username and password will then be the same as the username.

Create a directory named “neverfox-drizzle” and upload in there. Thank you!


ReplyQuote
(@neverfox)
White Dwarf Customer
Joined: 4 months ago
Posts: 11
September 15, 2020 19:28

Done!


(@vincent-mod)
Quasar Admin
Joined: 3 years ago
Posts: 2484
September 17, 2020 14:13

Thanks, I'll download the data shortly and have a play with it.


ReplyQuote
(@vincent-mod)
Quasar Admin
Joined: 3 years ago
Posts: 2484
September 20, 2020 13:02

So I'm trying the bayer drizzle integration, I do see differences between the OIII and Ha, mainly in signal. But that's to be expected as the OIII signal is much lower, so in the end result is difficult to notice. There is a difference though with the regular integration, so it's something I'll try to investigate further.


ReplyQuote
(@neverfox)
White Dwarf Customer
Joined: 4 months ago
Posts: 11
September 27, 2020 18:14

If there are differences, they aren't readily visible in the way you'd expect though. When I load one and then the other in APP preview, you can't tell that you actually changed the image. That's not what you get if you don't use drizzle. Instead you get a strong Ha and weak OIII with noticeable differences in where the nebulosity has signal. Happy to provide the integrated files so you can see if I'm seeing what you're seeing.

This post was modified 1 month ago by Roman Pearah

ReplyQuote
(@vincent-mod)
Quasar Admin
Joined: 3 years ago
Posts: 2484
September 28, 2020 11:53

Mm, yes that would be nice, I can forward those to Mabula with some of the explanation. Could you upload those in the same folder on the server? I couldn't see it very well which made it hard to make conclusions, the OIII was too weak for that in my processing.


ReplyQuote
(@xs4allan)
White Dwarf Customer
Joined: 7 months ago
Posts: 17
September 28, 2020 16:55

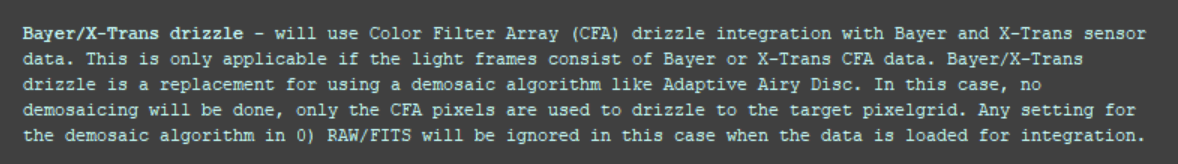

@mackiedlm Isn't it so that when using bayer drizzle or x-trans the bayer CFA settings under tab 0) gets ignored?


ReplyQuote
(@deeko76)
Brown Dwarf Customer
Joined: 2 years ago
Posts: 9
October 2, 2020 21:28

Same experience here. When trying to use Bayer drizzle the two files using the 'Ha-OIII extract Ha' and 'Ha-OIII extract OIII' algorithms are poor quality and look almost identical. Using interpolation mode is fine with 'OK' results but I wanted to try drizzle as images are dithered and undersampled. Any update on what the issue might be on this ? thanks!


ReplyQuote
(@vincent-mod)
Quasar Admin
Joined: 3 years ago
Posts: 2484
October 5, 2020 18:07

I've asked Mabula to have a look as I'm not super familiar with this particular workflow.


ReplyQuote
(@tkottary)
Molecular Cloud Customer
Joined: 2 years ago
Posts: 5
October 13, 2020 03:12

This never worked for me for the past 2 years now.
