Blue Channel Missing After Stacking

11 Posts
3 Users
3 Reactions
2,526 Views
(@jaspreet123456)
Brown Dwarf
Joined: 6 years ago
Posts: 4
Topic starter

After stacking the images in APP final stacked file doesn't have the blue channel when i stretch the image. the whole image have a green/yellow overcast. when i load the lights in the APP the channels are out of balance.

ive attached some fits file with flats, Dark flats and Master dark.

if anyone can have a go at it and can help me out with it. I'll really appreciate it.

im using Zwo 294mc pro

with Optolong L extreme

Flats taken at same temp as lights

27Kadu

https://drive.google.com/drive/folders/107kE4OWkXy0MaPCaTjyyTWCaCETD4emW?usp=sharing




ReplyQuote
(@wvreeven)
Quasar
Joined: 8 years ago
Posts: 2134


@jaspreet123456 I am downloading the data and will have a look.




ReplyQuote
(@gary-clayton)
Main Sequence Star
Joined: 6 years ago
Posts: 23


@jaspreet123456

It looks like an issue with your flats and darks, your image without flats/darks looks ok.

yellowish 1 lpc cbg csc St
2021 09 07 14 24 20 Le extreme  10.50 5.50s 0002 St




This post was modified 5 years ago by Gary Clayton


ReplyQuote
(@jaspreet123456)
Brown Dwarf
Joined: 6 years ago
Posts: 4
Topic starter

@wvreeven

Thank you, I've tried stacking without flats still the same the Blue is missing in the final stacked image.

Screen Shot 2021 09 08 at 11.18.15 pm
Screen Shot 2021 09 08 at 11.18.49 pm




This post was modified 5 years ago by Jaspreet singh


ReplyQuote
(@gary-clayton)
Main Sequence Star
Joined: 6 years ago
Posts: 23


@jaspreet123456

Try with out the master dark, it works ok for me see above image and it looks like you are using PixInsight?


This post was modified 5 years ago by Gary Clayton


ReplyQuote
(@jaspreet123456)
Brown Dwarf
Joined: 6 years ago
Posts: 4
Topic starter

@gary-clayton

Screen Shot 2021 09 08 at 11.18.15 pm

 This is what I'm getting without flats yellowish overcast and when i do channel extraction in Pix the blue channel is empty.




ReplyQuote
(@wvreeven)
Quasar
Joined: 8 years ago
Posts: 2134


@jaspreet123456 What version of APP are you using?




ReplyQuote
(@wvreeven)
Quasar
Joined: 8 years ago
Posts: 2134


@gary-clayton Thanks very much for your help!




ReplyQuote
(@wvreeven)
Quasar
Joined: 8 years ago
Posts: 2134


@jaspreet123456 I integrated your files in APP 1.083-beta2 and got this result

Screenshot 2021 09 08 at 15.24.17

The histogram on the right shows that there is blue data in the result. The green cast needs to be reduced obviously and this is normal for OSC.

However, as @gary-clayton showed there probably is an issue with the master dark. When was the master dark created and with what version of APP? Do you still have the raw darks that the master was created from? If yes, please use those instead of the master and see if that solves the issue.

Also notice that you uploaded the master flat in the flats directory. Either only load the master flats or the raw flat subs and not both.




ReplyQuote
(@gary-clayton)
Main Sequence Star
Joined: 6 years ago
Posts: 23


@jaspreet123456

it does appear to be your master dark that is at issue, I stacked your image with out flats/darks in APP and then extracted

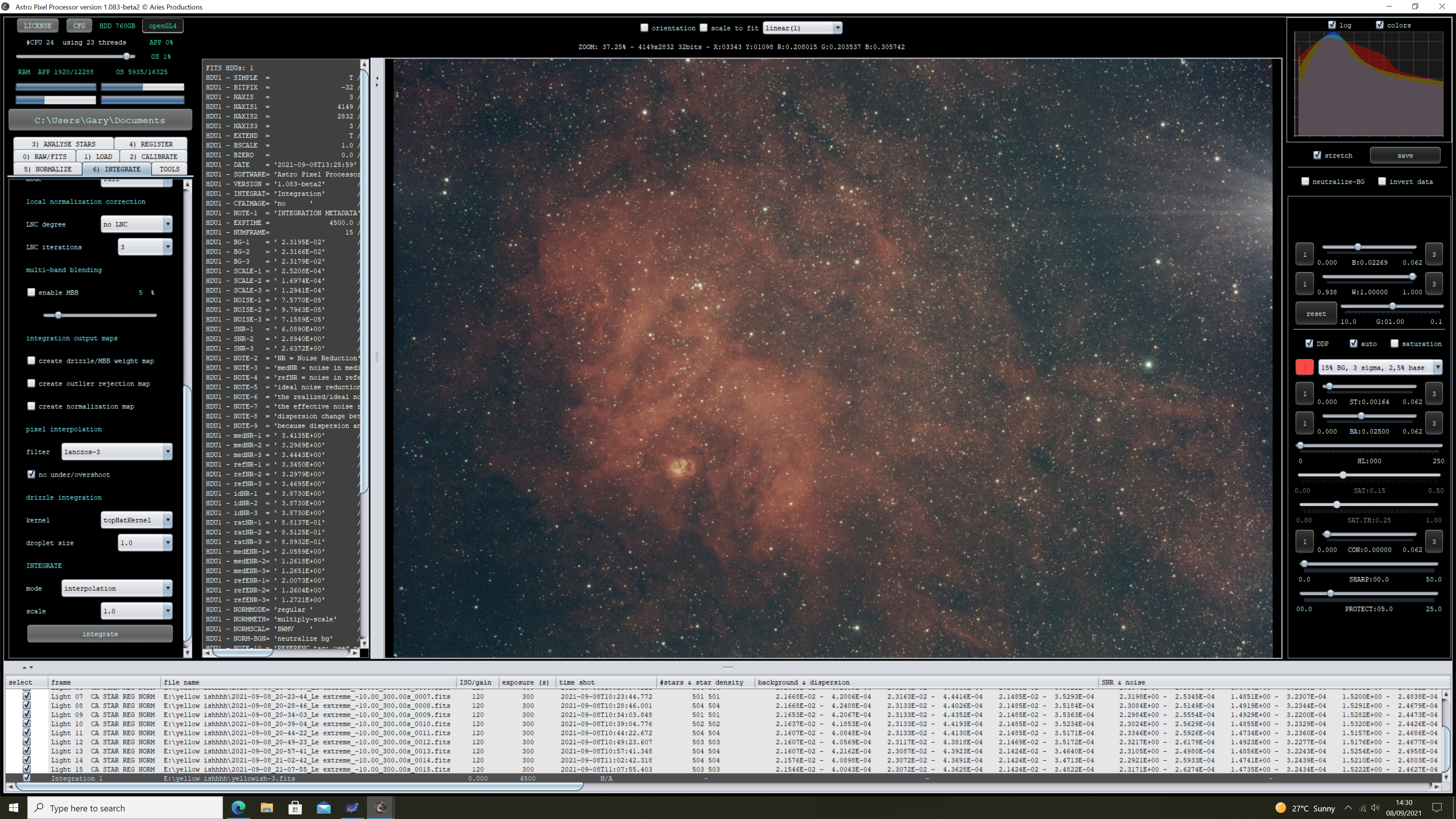

Screenshot (27)

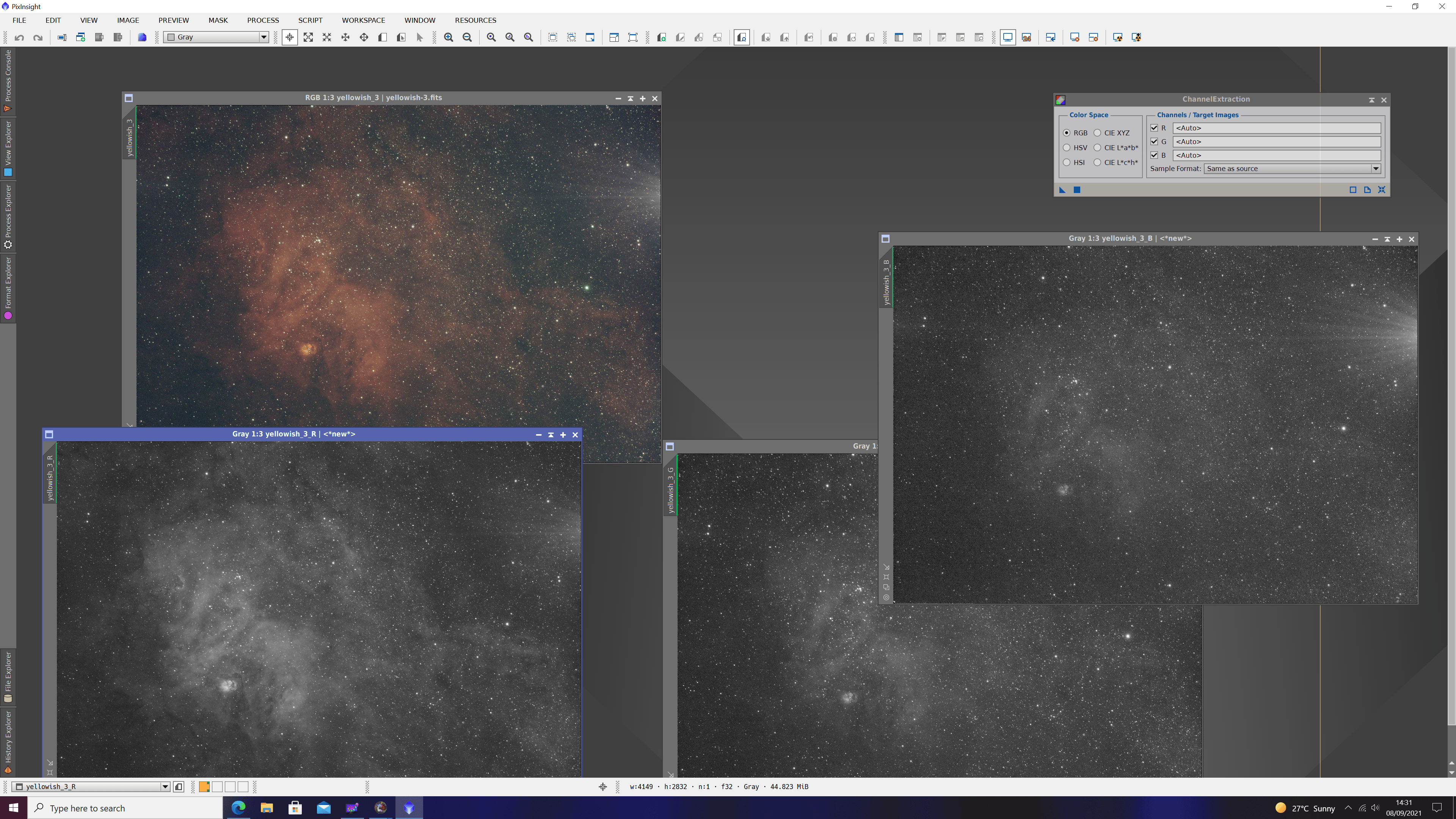

the colour channels in PixInsight, please see image below.

Screenshot (28)






ReplyQuote
(@jaspreet123456)
Brown Dwarf
Joined: 6 years ago
Posts: 4
Topic starter

@gary-clayton @wvreeven thank you both for your help it indeed was my darks, I did my darks 4-5 months ago i didn't know we had to do them regularly. I'll take new darks tomorrow and try again. Thank you both for your help. Really appreciate it.
