Hello all,
Any thoughts appreciated!!
My integration looks like this:
Clearly something is wrong!
Am using a Canon 5d mkiv with a Skywatcher ED80, no filters.
172x60s .CR2 lights, 37 flats (t-shirt, pale blue sky), 59 darks shot same night as lights, 33 bias & 31 dark flats. All ISO 3200.
Single session, default settings, Version 1.083 used.

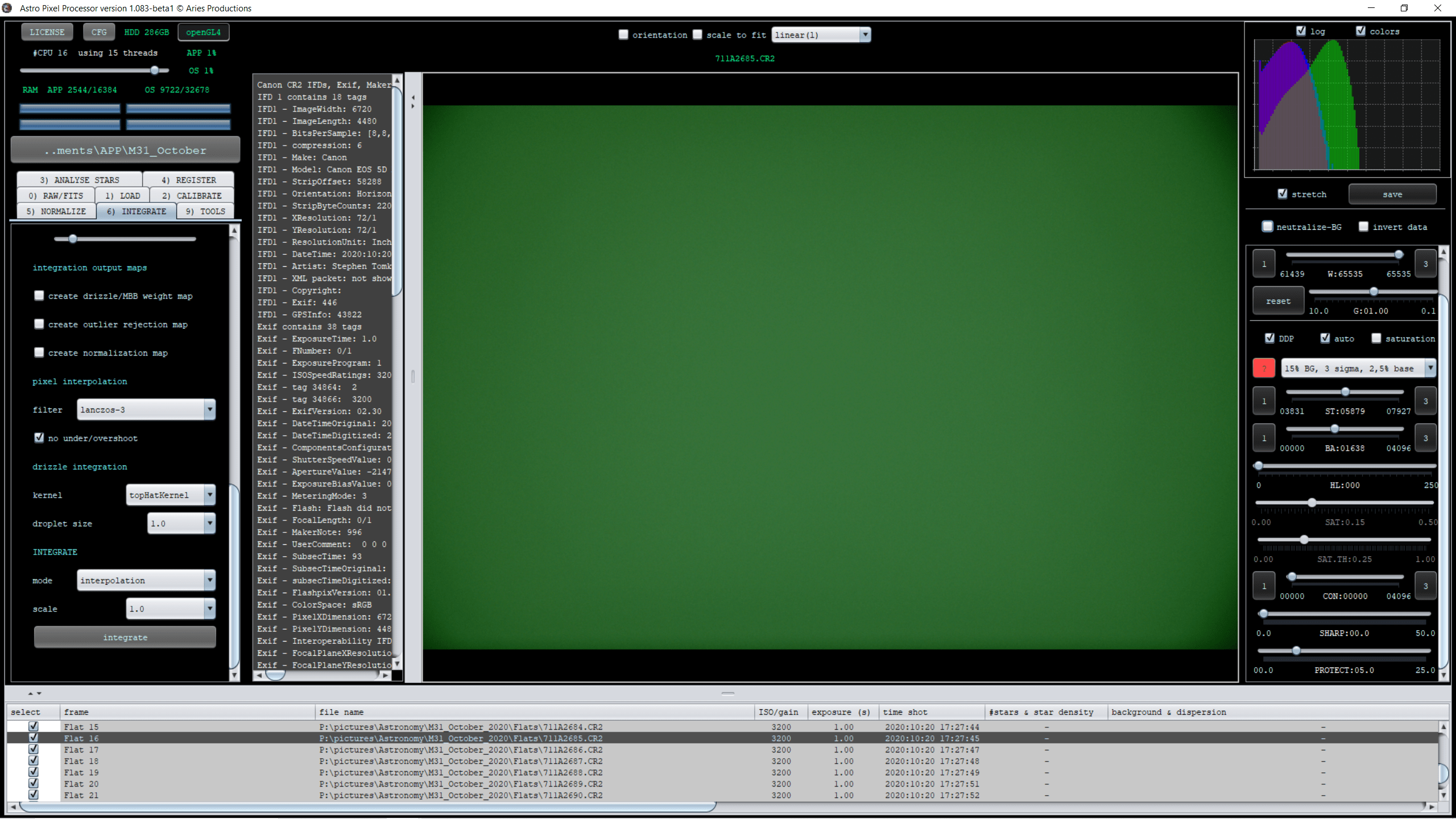

Here is a sample Light:

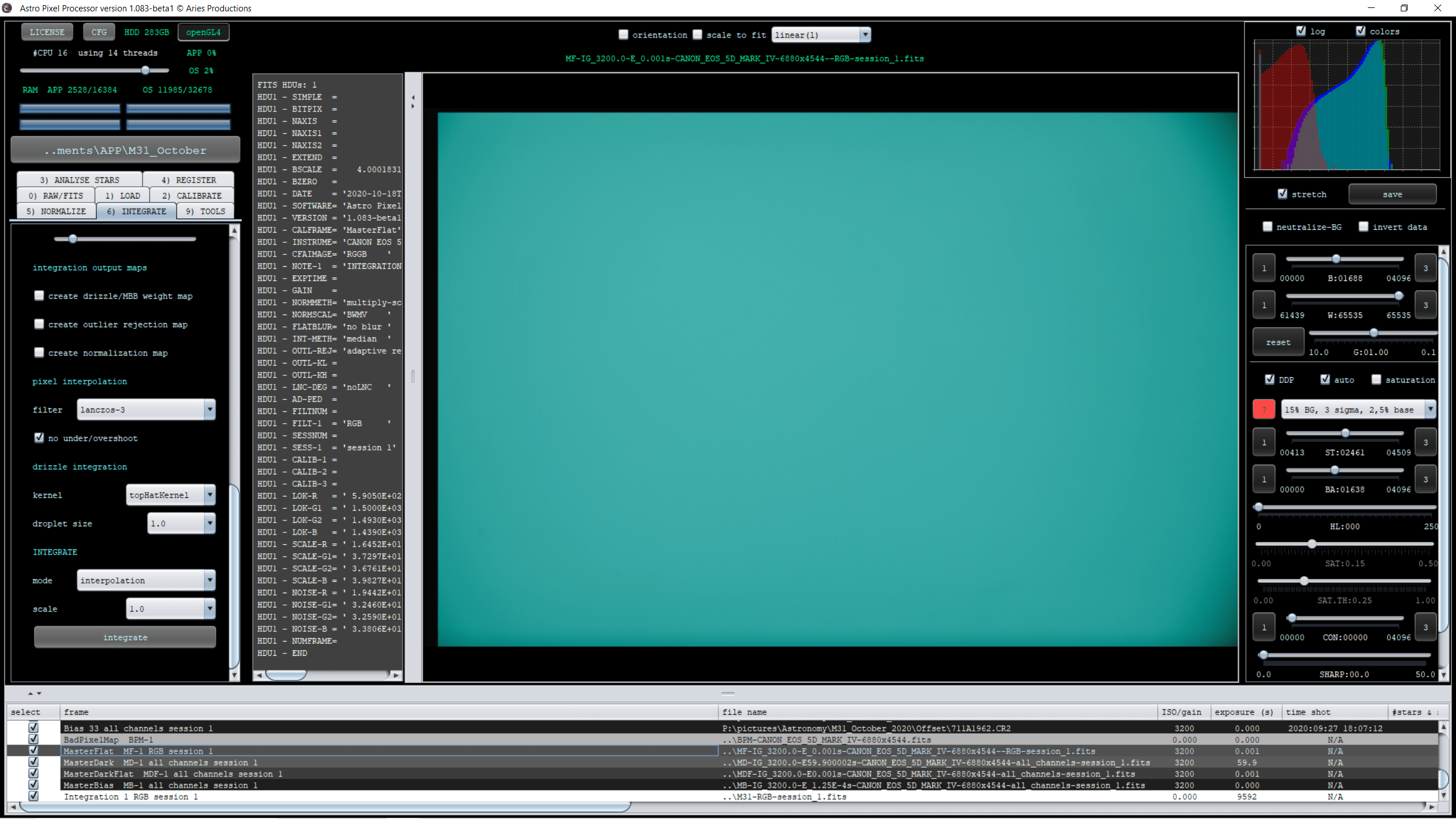

Master flat:
Master dark:
Master bias (note dark band at bottom 😫):
Master dark flat:
Any pointers would be much appreciated. Flats don't appear to be working as intended, there is a weird circular "rainbow" on the integration and an obvious issue with banding at the bottom of the image...
Hopefully it's something simple!!!
Many thanks
Stephen
did you use a 2" or a 1,25" adaptor to the camera ? a 2" focuser is OK for a full frame camera but a 1,25" will give you vignetting .
Guido
Hi,
ED80, Feathertouch focuser, a field flattener and a standard 2" T adapter for EOS.
Kind regards,
Stephen.
P.S. here is the integration result with just darks. No circular rainbow effect, minimal banding, and fairly uniform vignetting. Puzzling!
did you use a 2" or a 1,25" adaptor to the camera ? a 2" focuser is OK for a full frame camera but a 1,25" will give you vignetting .
Guido
Hi, I have the same problem as Stephen T, only worse! This is the first I've heard about vignetting from a 1.25" adapter. Can you elaborate on this?
I shoot flats and the flats absolutely cannot get rid of my terrible vignetting -- and I have a 1.25" adapter for my Canon T7!
Any suggestions or help are appreciated!
as your Canon T7! has a aps-C sensor the vignetting can not come from the 1,25" focuser/adaptor . so I can not find out what happened . is APP to blame ? I can not see why . I use a Sony A7R II = mirrorless and I have no vignetting with a 2" focuser . I suppose there must be a physical obstruction .
Guido
What exposure time did you use for the flats? And I usually use a white wall, door or towel indoors where I can regulate the exposure time for the flats by opening and closing curtains and doors until the illumination is correct. I aim for the histogram peak to be between 40% and 60% when inspected with HistogramTransformation in PI (without actually performing a transformation of course).
HTH, Wouter
Hi Wouter.
Flats were shot at 1/1000s to get a nice peak in the centre of the histogram.
It looks to me as if the master flat is over-applied on one side of the image and under-applied on the other. The circular rainbow effect in the final integration is another mystery....
Regards,
Stephen.
Hi Stephen,
In my experience with DSLR cameras you need to take flats with an exposure time of at least 1 second. The reason is mirror flip which takes a considerable amount of time compared to short exposure times, like the 1/1000 second that you use. This introduces an uneven exposure over the FOV resulting in artifacts like seen in your image. So, retake the flats and the dark flats and you should be fine. Just add more layers of white t-shirt if the sky is too bright, or take your setup inside and do it there. Just make sure to use a naturally illuminated room and try not to use artificial light since the spectrum of those sources messes up the flat field correction again.
Also, when using both dark flats and darks you don't need bias anymore. This is what I do with all my CMOS data (both Canon EOS and ZWO cameras): lights, darks, flats and dark flats. Works like a charm.
HTH, Wouter
Hi Stephen,
In my experience with DSLR cameras you need to take flats with an exposure time of at least 1 second. The reason is mirror flip which takes a considerable amount of time compared to short exposure times, like the 1/1000 second that you use. This introduces an uneven exposure over the FOV resulting in artifacts like seen in your image. So, retake the flats and the dark flats and you should be fine. Just add more layers of white t-shirt if the sky is too bright, or take your setup inside and do it there. Just make sure to use a naturally illuminated room and try not to use artificial light since the spectrum of those sources messes up the flat field correction again.
Also, when using both dark flats and darks you don't need bias anymore. This is what I do with all my CMOS data (both Canon EOS and ZWO cameras): lights, darks, flats and dark flats. Works like a charm.
HTH, Wouter
Many thanks for the advice. I will try what you have suggested.
Regards,
Stephen.
as your Canon T7! has a aps-C sensor the vignetting can not come from the 1,25" focuser/adaptor . so I can not find out what happened . is APP to blame ? I can not see why . I use a Sony A7R II = mirrorless and I have no vignetting with a 2" focuser . I suppose there must be a physical obstruction .
Guido
I don't blame APP for the vignetting; this has been a consistent problem of mine and I was hoping that APP would help me get rid of it!
I'll stop hijacking this thread and start a new one in a couple of days with my setup and some images. Thanks.
The over correcting of the lights is because this seems to be an issue in the flats themselves. I can see a brighter part around the flat there which apparently is not there when you take the lights. Therefore it corrects those too much. There should be some hardware difference that causes that lighter ring around your flats to appear.
Hi Vincent, thank you for your reply.

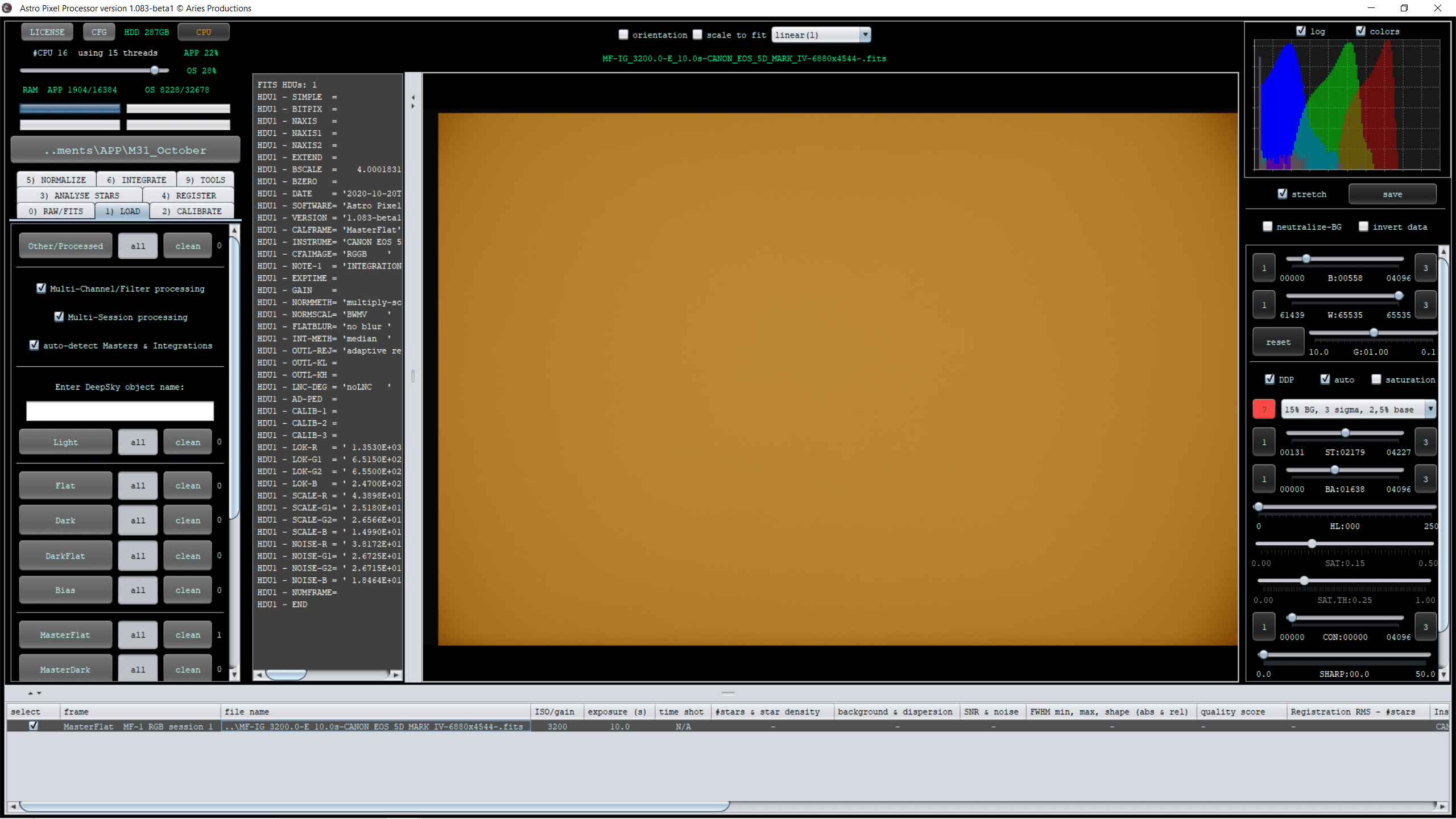

I have today taken some new flats using 4 layers of T shirt against my dell monitor set to white. Exposure time was 10 seconds each as opposed to 1/1000s previously and as recommended by Wouter @wvreeven above. 21 flats yielded this master flat:-
The same number of dark flats were created & used. Bias were omitted this time. Integration looks like this:
I can't really say the result is better than the first attempt. Rainbow circle is still there and the vignette correction is still wrong...
I am wondering about trying to de-saturate the flats to see if that helps? Clearly I need to find a better light source as the monitor skews the histogram in the red channel
Regards
Stephen
Hi Stephen,
I had a similar experience where I used an iPad for my flats. That also introduced all kinds of artifacts in my stacks. This is why I recommended you to use a natural light source. No light bulbs, especially led, and no tv or computer screens. Just a white wall or towel illuminated by daylight entering the room via a window is more than enough. Place the telescope at some 30 to 50 cm from the wall or towel and take your flats.
HTH, Wouter
Thanks Wouter,
I couldn't find anything evenly illuminated by natural light and the clouds were very variable today, but I will keep trying - and looking at the histogram more closely!!
However the fact remains that the circular rainbow appears in both my old and new master flats both natural light and artificial when the background is neutralised.
Regards
Stephen
OK I have now got some flats with everything RGB in the middle of the histogram. Back later....
Ok... New integration with better flats (24 x 1 second, white wall, natural light) new dark flats also:-
Coloured ring still much in evidence.
Camera histogram for a sample flat

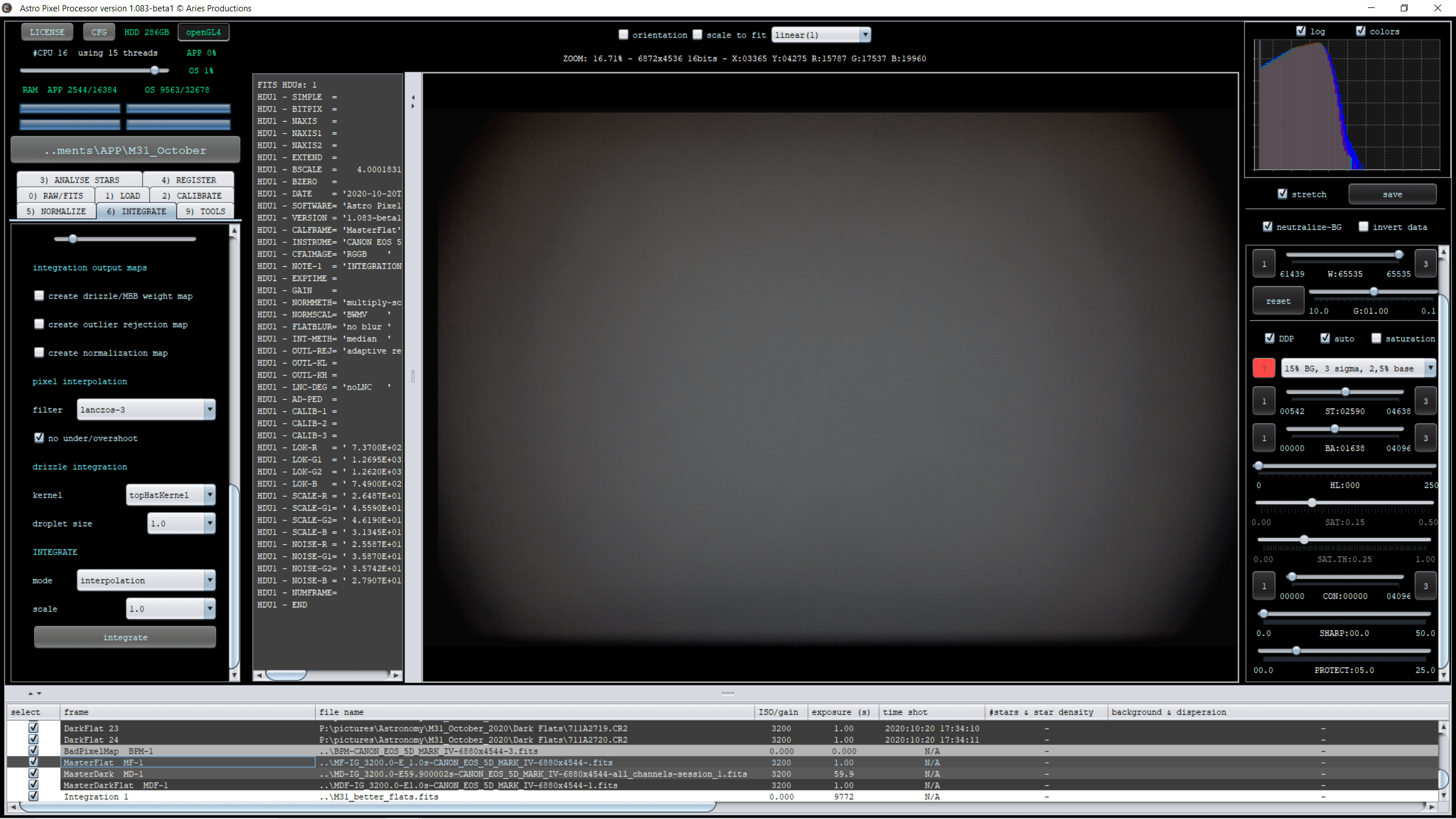

Master flat, neutralised BG
The coloured ring is still there 😣
Sample flat as APP sees it:

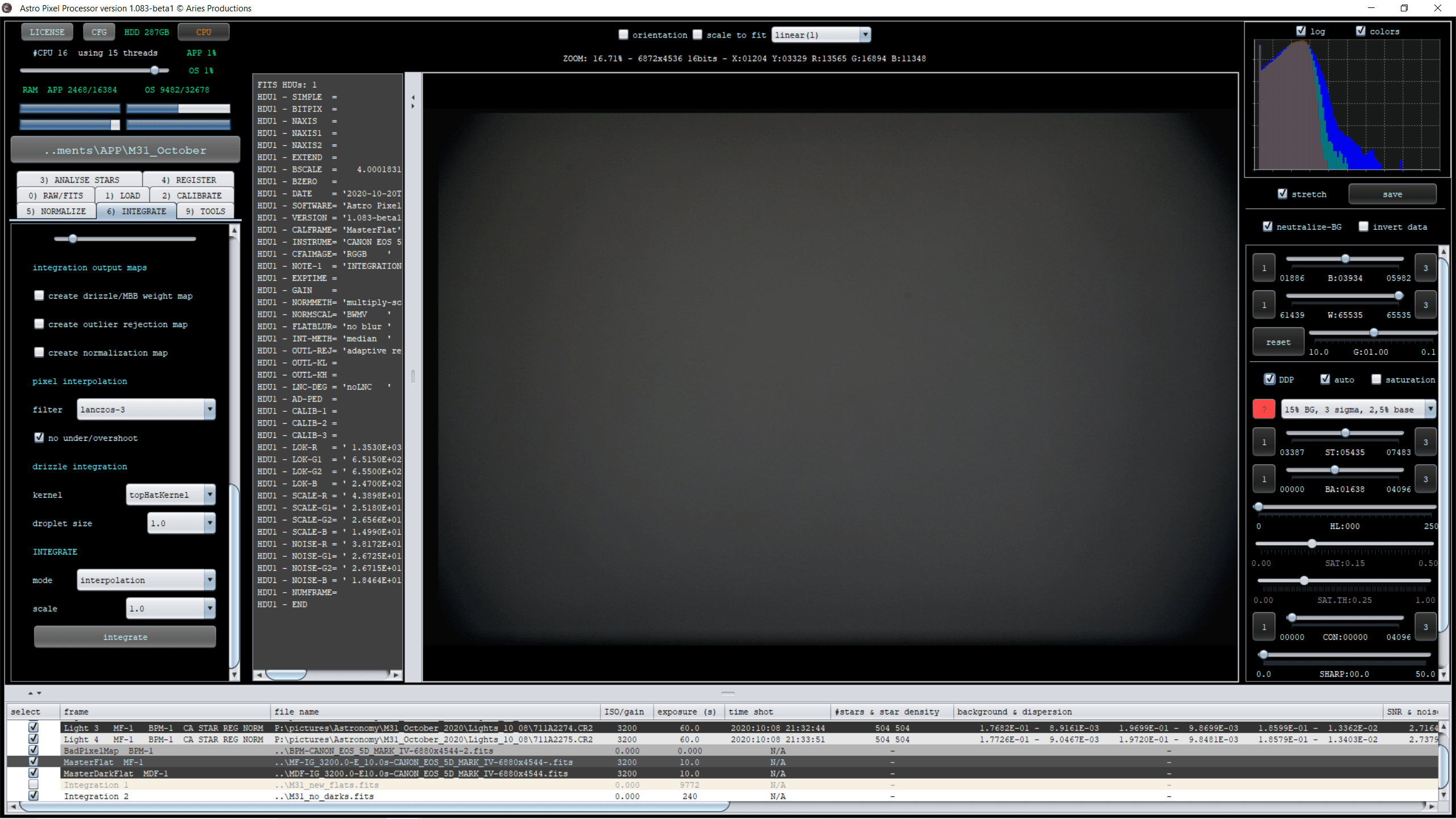

Sample flat neutralised BG, again a slight ring
and finally the highest score light frame, neutralised BG, no ring....
Any more thoughts much appreciated....
Stephen
These issues can be very difficult to pinpoint, but this is starting to look like internal reflection in your setup. Not sure though, but what you could try is to take your integration without flats, then use the light pollution correction tool to get rid of the gradient as much as possible. Is a ring visible there (just fainter)?
I'm going to ask for the data soon. 😉
Is the camera modded in any way? Did you cover the view finder? Sometimes light enters through it and since you take the flats during daylight and the lights at night that may explain it if no covered. Just some guesses here.
Thanks Vincent, no, the stretched integration without flats does not show the ring. I am reaching the same conclusion 🙂
I switched to using a Canon 100-400mm lens last night for some subs. Haven't taken flats yet but will post the results back in here when I have.
I perhaps mistakenly tnought that flats were only for controlling luminance so the addition of the rainbow is puzzling. I wonder if its some sort of diffraction from the Hotech field flattener I use.
Anyway, the flats with the 400mm should help point in the right direction.
Incidentally I tried stacking in DSS and you will be relieved to hear the results were the same 😉
Apologies for the late reply...
Thanks Wouter. No the camera is a fairly new 5D mk iv and I use it for my landscape and wildlife photography so not going to modify it.
Please see my reply to Vincent above for some other information.
I have tried integrating with 4 different sets of flats and the result is always the same. If I get similar results with the 400mm I will know it's me and not the hardware at fault. I will do as you suggest and cover the viewfinder. I may do covered and uncovered to see if there is any difference 🙂
Well to add another voice, as I said earlier, I had (have) a bad vignetting problem, and it IS due to my field flattener! However, my image train is very different from Stephen's: Nexstar 8 (2032mm FL), Astromedia f/6.3 Focal Reducer/Field Flattener, Canon T7 connected through a 1.25" T-ring & adapter.
Example:
This is about 60 minutes worth of 60 second subs, calibrated with darks, flats, and bias, some stretch but no other processing. Clearly a huge amount of vignetting.
I removed the flattener, and this is the result:
This is about 75 minutes worth of 60" subs, calibrated with darks, flats, and bias, more processing than the first picture, but also, no trace of vignetting! Clearly the FR/FF is introducing the vignetting. What I don't understand is why the flats didn't eliminate it.
Also, the terrible vertical artifact below the nucleus in the second picture is, I think, a hair inside my camera. It does show up on the flats, but the flats, again, don't eliminate it from the final image. Has anybody seen anything like this, and any tips on how to get rid of it?
Interesting, thank you. When I have time this weekend I will remove the flattener and create a masterflat without it. Will post back here when done.
It has to be something in the setup at least, it's an optical effect and can be caused by these optical attachments in combination with something else like the light source. This is also why it's difficult to solve from our side as it's very specific to your setup. But you'd indeed have to take this step by step and try to find what influences this. Good luck!
Hi guys, below is a new master flat taken without the Hotech SCA field flattener on my SW ED80. If it is not my imagination there is still a slight hard ring on this flat
A reminder of the flat with the flattener:-
I suspect the issue is therefore with the ED80 and made worse with the addition of the flattener.
Going to use the Canon100-400m II for a while now instead, 70 minutes on M33 yielded this which isn't too bad.
Not sure where all the red comes from in this though!
Hi,
'...Canon T7 connected through a 1.25" T-ring & adapter. '
Do you really mean a 1.25" T-ring (31.75mm)? I don't know this reducer but 1.25" seems a considerable restriction. Are you able to test with a T2 (42mm) or M48 (48mm) connector to see if this resolves the issue?
Mike
Mike, we may be talking past each other. This is my setup:
A standard Canon T-ring with a 1.25" eyepiece adapter. Are you saying that something like this:
would be better for reducing vignetting with my f/6.3 focal reducer? Thanks.
- Rich
Hi Rich,
I think it very likely that the 1.25" eyepiece adaper is causing vignetting in your set-up.
I imagine that the light cone from your scope plus reducer is diverging too fast to pass unobstructed through the 1.25" diameter restriction.
I wouldn't want you to spend money solely on my suggestion so hopefully Vincent might also comment.
Mike
Yes, 1.25" will cause more vignetting if your sensor is covering that light path (you notice these even more with a fullframe camera). Been a while since I had my setup so I have to dig a bit from memory, but I believe I attached a Coma corrector directly to the Canon, which I think was a 2" opening. Still had some vignetting, but that was to be expected for a fullframe camera I used.
